Optimizing Urban Air Quality Monitoring with Multi-Parameter Integration

The Challenge

Urban air quality management faces unprecedented complexity as municipalities struggle to balance industrial growth with environmental compliance. Traditional monitoring approaches rely on disparate sensor networks—separate installations for particulate matter (PM2.5/PM10), meteorological parameters, and acoustic monitoring—creating significant operational and financial burdens for smart city initiatives.

Fragmented Infrastructure Costs Conventional deployment strategies require individual sensor nodes for each parameter, multiplying installation expenses, calibration procedures, and maintenance schedules. Each additional sensor point demands separate power infrastructure, communication modules, and mounting hardware, driving capital expenditure upward by 300-400% compared to integrated approaches.

Data Correlation Deficits When meteorological, particulate, and noise data originate from spatially separated instruments, temporal and spatial correlation suffers. Wind speed and direction—critical for pollution dispersion modeling—often come from weather stations kilometers away from air quality sensors, introducing errors in source attribution and exposure assessment.

Maintenance Complexity Rotating mechanical anemometers require regular bearing replacement and calibration, while separate PM sensors demand frequent filter cleaning and zero-span checks. This maintenance overhead strains limited municipal technical resources, leading to data gaps during critical pollution episodes.

Deployment Rigidity Traditional systems with mechanical wind sensors require precise north alignment and frequent recalibration. Mobile monitoring for construction sites or emergency response becomes impractical, limiting environmental agencies’ ability to respond to dynamic pollution events.

The Solution

The OHTS1070 Ultrasonic Integrated Weather Station addresses these urban monitoring challenges through a revolutionary 10-in-1 consolidation strategy. By integrating PM2.5/PM10 particulate sensors, acoustic monitoring, and meteorological parameters into a single ultrasonic-based device, the system reduces deployment complexity while enhancing data integrity for smart city applications.

Consolidated Intelligence Unlike conventional multi-node deployments, the OHTS1070 synchronously acquires wind speed/direction, temperature/humidity, noise levels, particulate concentrations, CO2, atmospheric pressure, light intensity, rainfall, and solar radiation from a unified measurement point. This co-location ensures perfect temporal correlation between pollution events and meteorological conditions, enabling precise source apportionment and dispersion modeling.

Zero-Maintenance Ultrasonic Technology Utilizing Time-of-Flight (ToF) ultrasonic principles rather than mechanical cup anemometers, the system eliminates moving parts entirely. With no starting wind speed threshold (0-60 m/s range) and 360° omnidirectional detection, the OHTS1070 delivers maintenance-free operation for 5+ years, significantly reducing total cost of ownership (TCO) for municipal monitoring networks.

Flexible Deployment Architecture The optional built-in electronic compass eliminates orientation constraints, allowing rapid deployment on mobile platforms, construction vehicles, or temporary monitoring stations without manual north alignment. Wide-voltage DC power supply (10-30VDC) with ≤1.2W consumption enables solar-powered remote installations, extending monitoring coverage to grid-limited urban peripheries.

Quantified Business Value

• 60% reduction in initial deployment costs through single-point installation
• 80% decrease in annual maintenance expenditure via solid-state ultrasonic design
• 99.2% data availability through industrial-grade sensor stability (-40°C to +80°C operation)
• 2000m communication range via RS485/Modbus-RTU, reducing gateway infrastructure requirements

Technical Architecture

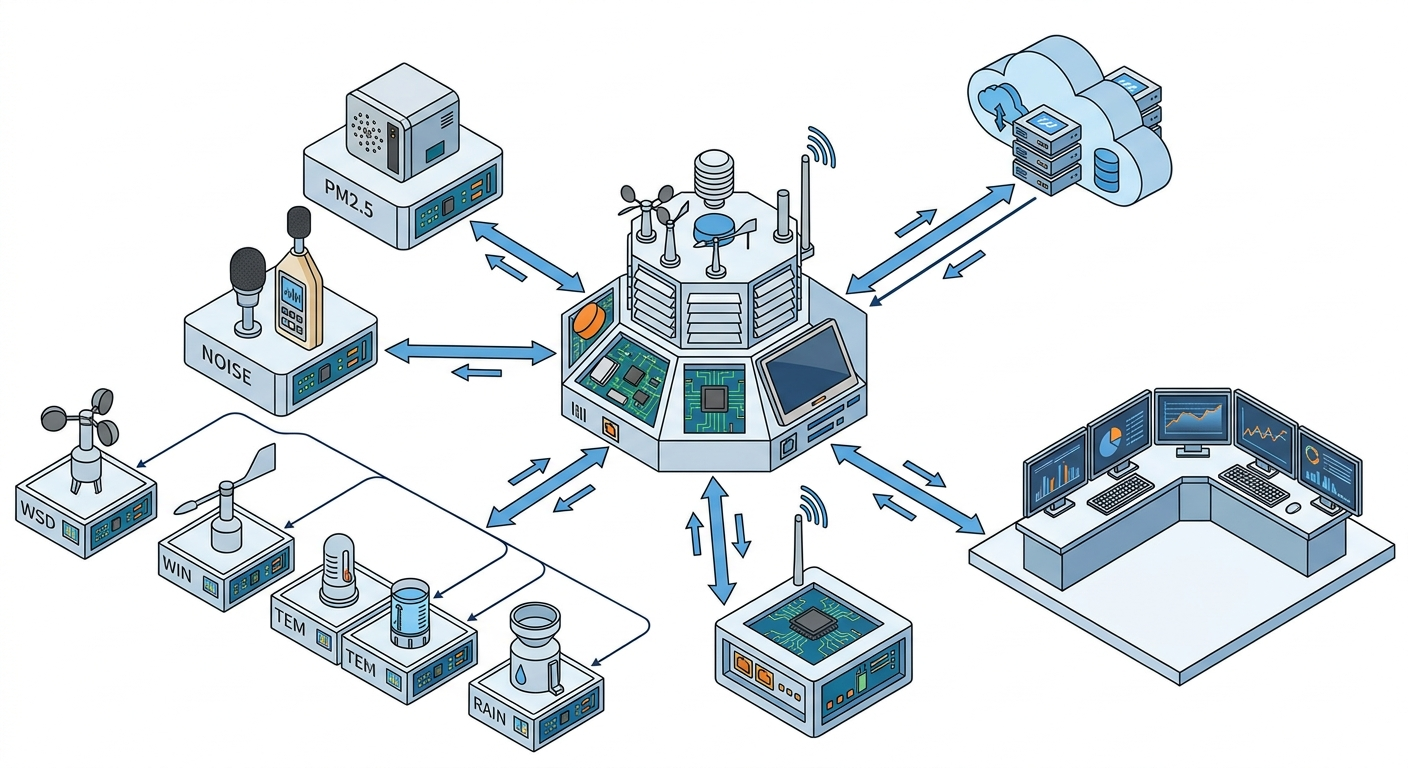

System Composition

The integrated monitoring architecture centers on the OHTS1070 sensor core, comprising three functional layers:

Sensor Array Layer

• Ultrasonic Wind Module: Four-transducer Time-of-Flight array measuring wind speed (0-60 m/s, ±0.2 m/s accuracy) and direction (0-359°, ±3° accuracy) with 1-second response time
• Particulate Sensing Unit: Laser scattering-based PM2.5/PM10 detector (operating range -20°C to +60°C)
• Acoustic Monitor: Precision noise measurement capability integrated within the radiation shield
• Meteorological Cluster: Swiss-precision temperature/humidity sensors, capacitive pressure transducer, photodiode light sensor, optical rain gauge, and thermopile pyranometer for solar radiation

Data Processing Layer Onboard microprocessor performs real-time quality control, averaging, and unit conversion. The system supports configurable sampling intervals and automatic error detection for each parameter, ensuring data integrity before transmission.

Communication Interface Standard RS485 physical layer with Modbus-RTU protocol (default 4800 baud) enables seamless integration with existing SCADA systems, IoT gateways, and municipal data platforms. The bus topology supports multi-drop configurations, allowing up to 247 stations on a single communication line within 2000m range.

Data Flow Integration

STEP 1: Synchronous Acquisition All 10 parameters sample simultaneously at configurable intervals (typically 1-60 seconds), ensuring temporal alignment critical for pollution event analysis.

STEP 2: Edge Processing Raw sensor data undergoes temperature compensation, cross-sensitivity correction, and statistical averaging (moving average or standard meteorological averaging) within the device firmware.

STEP 3: Protocol Conversion Processed data converts to IEEE 754 floating-point format within Modbus registers (holding registers 40001-40020), accessible via standard function codes 03 (Read Holding Registers) and 04 (Read Input Registers).

STEP 4: Network Transmission RS485 differential signaling transmits data to remote terminal units (RTUs) or IoT gateways, with built-in surge protection ensuring reliability in urban electrical environments.

STEP 5: Platform Integration Data feeds directly into environmental monitoring platforms, smart city dashboards, or regulatory compliance databases via standard industrial protocols, supporting real-time alerts and historical trend analysis.

Key Advantages

Measurement Accuracy Specifications

Application Scenarios

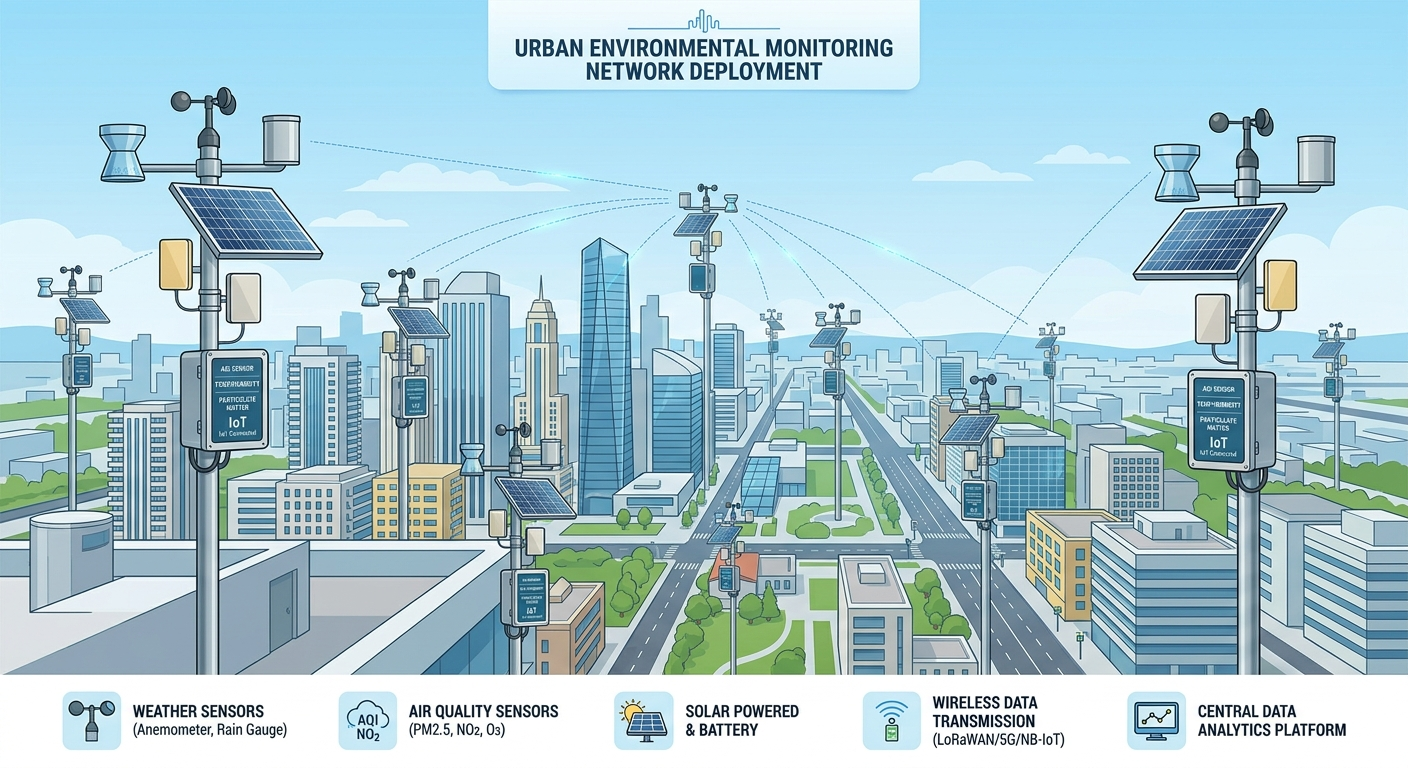

Urban Grid-Based Air Quality Monitoring

For smart city deployments requiring comprehensive spatial coverage, the OHTS1070 enables high-density sensor grids at fraction of traditional costs. Municipalities deploy units at 1-2 km intervals across urban districts, capturing localized pollution hotspots from traffic corridors and industrial zones.

Deployment Steps:

STEP 1: Site Selection Identify representative locations avoiding direct obstructions within 10x the height of surrounding obstacles. Ensure clear sky view for solar radiation measurement and rainfall detection.

STEP 2: Infrastructure Preparation Install 2-meter galvanized pole with cross-arm at 10m height (standard meteorological height). Mount solar panel (20W minimum) and battery enclosure (12V/20Ah) for autonomous operation.

STEP 3: Device Installation Mount the OHTS1070 using U-bolt clamps. For models without electronic compass, orient device front toward true north using handheld GPS compass. With electronic compass option, ensure horizontal leveling only.

STEP 4: Communication Setup Connect RS485 A/B lines to data logger or IoT gateway. Configure Modbus address (1-247) and baud rate (4800 default). Verify communication integrity over intended cable distance (up to 2000m).

STEP 5: Calibration Verification Allow 24-hour stabilization period. Verify wind zero-point (should read 0.0 m/s in still air), check PM sensor zero calibration, and validate meteorological readings against reference instruments.

STEP 6: Platform Integration Map Modbus registers to environmental monitoring software. Configure alert thresholds for PM2.5 exceedances (>35 μg/m³ 24-hour average per WHO guidelines) and noise limits.

Construction Site Dust and Noise Compliance

Construction projects require continuous boundary monitoring for particulate emissions and noise levels to comply with environmental regulations. The integrated design allows single-point deployment at site perimeters, monitoring both dust dispersion (via wind data) and noise propagation simultaneously.

Key Benefits:

• Real-time alerts when PM10 exceeds 150 μg/m³ (construction standard)
• Wind data enables dust suppression automation (spray activation when wind >5 m/s toward sensitive receptors)
• Noise monitoring with meteorological context (temperature inversion detection affecting sound propagation)

Mobile Emergency Response

Equipped with the electronic compass option, the OHTS1070 deploys rapidly on vehicle platforms or temporary tripods for:

• Chemical spill dispersion modeling (wind speed/direction + air quality)
• Fire smoke plume tracking (particulate + meteorological)
• Urban heat island studies (temperature + solar radiation)

FAQ

Can PM2.5/PM10 and CO2 sensors be installed simultaneously in the same unit?

No, when selecting product configurations, PM2.5/PM10 sensors and CO2 sensors cannot be configured simultaneously. You need to select one based on your specific application requirements—choose PM2.5/PM10 for particulate pollution monitoring or CO2 for greenhouse gas tracking.

What are the operating temperature limitations for different sensors in harsh urban environments?

Different sensors have different operating temperature ranges. The wind speed and direction sensor operates from -20°C to +70°C, while the PM2.5 sensor operates from -20°C to +60°C and the CO2 sensor from -10°C to +60°C. Other sensors like temperature, humidity, pressure, noise, light, and radiation can operate from -40°C to +80°C.

Is there any special environmental requirement for long-term urban deployment?

The device utilizes a capacitive humidity sensor, so avoid long-term use in environments containing volatile organic compounds (VOCs) to prevent sensor drift and maintain measurement accuracy. The UV-resistant ABS enclosure ensures durability in harsh outdoor environments.

What are the installation orientation requirements for the weather station?

Models without a built-in electronic compass require the device front to be oriented toward true north. Models with the optional built-in electronic compass only require horizontal leveling with no directional requirements, making them suitable for mobile platforms and rapid urban deployment.

What is the power supply requirement and maximum communication distance?

The device supports 10 VDC to 30 VDC wide voltage power supply with typical power consumption less than or equal to 1.2W, suitable for solar-powered installations. The RS485 interface supports standard ModBus-RTU protocol with a maximum communication distance of 2000 meters.

Reference

1. Product Documentation: OHTS1070 Datasheet - EN - Complete technical specifications and Modbus register mapping.

2. Communication Protocol: Modbus over Serial Line Specification and Implementation Guide V1.02 - Modbus Organization.

3. Air Quality Standards: WHO Global Air Quality Guidelines (2021) - Particulate matter (PM2.5 and PM10), ozone, nitrogen dioxide, sulfur dioxide and carbon monoxide.

4. Meteorological Standards: WMO-No. 8 Guide to Meteorological Instruments and Methods of Observation (2018 edition) - World Meteorological Organization specifications for urban meteorological stations.

5. Environmental Monitoring: EPA Quality Assurance Handbook for Air Pollution Measurement Systems Volume II - Ambient Air Quality Monitoring Program.
