Optimizing Urban Air Quality Monitoring Networks with Multi-Parameter Integration

The Challenge

Urban air quality monitoring networks face a critical scalability dilemma. Traditional deployments rely on single-parameter sensors—dedicated units for PM2.5 detection, separate noise monitoring stations, and distinct meteorological sensors—creating fragmented infrastructure that demands excessive capital expenditure and operational overhead.

The Density-Cost Paradox: Municipalities and environmental agencies must choose between comprehensive spatial coverage (requiring hundreds of discrete sensor points) and budget constraints. Single-parameter devices typically require individual power supplies, communication modules, and mounting hardware, multiplying installation costs by a factor of 6-7 for complete environmental characterization.

Data Silos and Correlation Gaps: When particulate matter, acoustic pollution, and meteorological parameters exist as isolated data streams, analysts miss critical correlations. Wind speed affects pollutant dispersion; humidity influences PM2.5 agglomeration; temperature gradients drive noise propagation. Without synchronized, co-located multi-parameter acquisition, environmental models suffer from temporal and spatial misalignment.

Maintenance Complexity: Each additional sensor node increases field service requirements. Calibration schedules diverge, communication protocols vary, and firmware updates become logistical nightmares. For smart city deployments spanning square kilometers, maintenance crews face routing inefficiencies and escalating operational expenditures.

The Solution

The OHTS1050 Multi-Element Weather Sensor addresses these challenges through consolidated 7-in-1 parameter integration. By combining particulate matter detection (PM2.5/PM10), acoustic noise monitoring, and meteorological sensing (temperature, humidity, pressure, illumination) within a single ruggedized enclosure, this solution enables network designers to reduce sensor node density by up to 70% while maintaining comprehensive spatial coverage.

Consolidated Data Acquisition: Rather than deploying separate hardware for each environmental parameter, the OHTS1050 captures seven critical metrics through unified acquisition electronics. This integration eliminates inter-sensor spatial displacement errors, ensuring that PM2.5 readings correlate precisely with concurrent wind, humidity, and noise data—essential for pollution source apportionment and urban planning.

Total Cost of Ownership (TCO) Optimization:

  • Capital Expenditure: Single-unit deployment replaces 6-7 discrete sensors, reducing hardware procurement costs by 60-75%
  • Installation Efficiency: One mounting point, one power cable, one communication line per monitoring location
  • Maintenance Streamlining: Unified calibration procedures and single-firmware updates reduce field service hours by 65%

Enhanced Spatial Analytics: With RS485 Modbus-RTU communication supporting distances up to 2000m, the OHTS1050 facilitates wide-area grid deployments. Cities can establish monitoring grids at 500m intervals rather than 200m intervals (required by single-parameter limitations), achieving equivalent coverage density with 60% fewer physical assets.

Technical Architecture

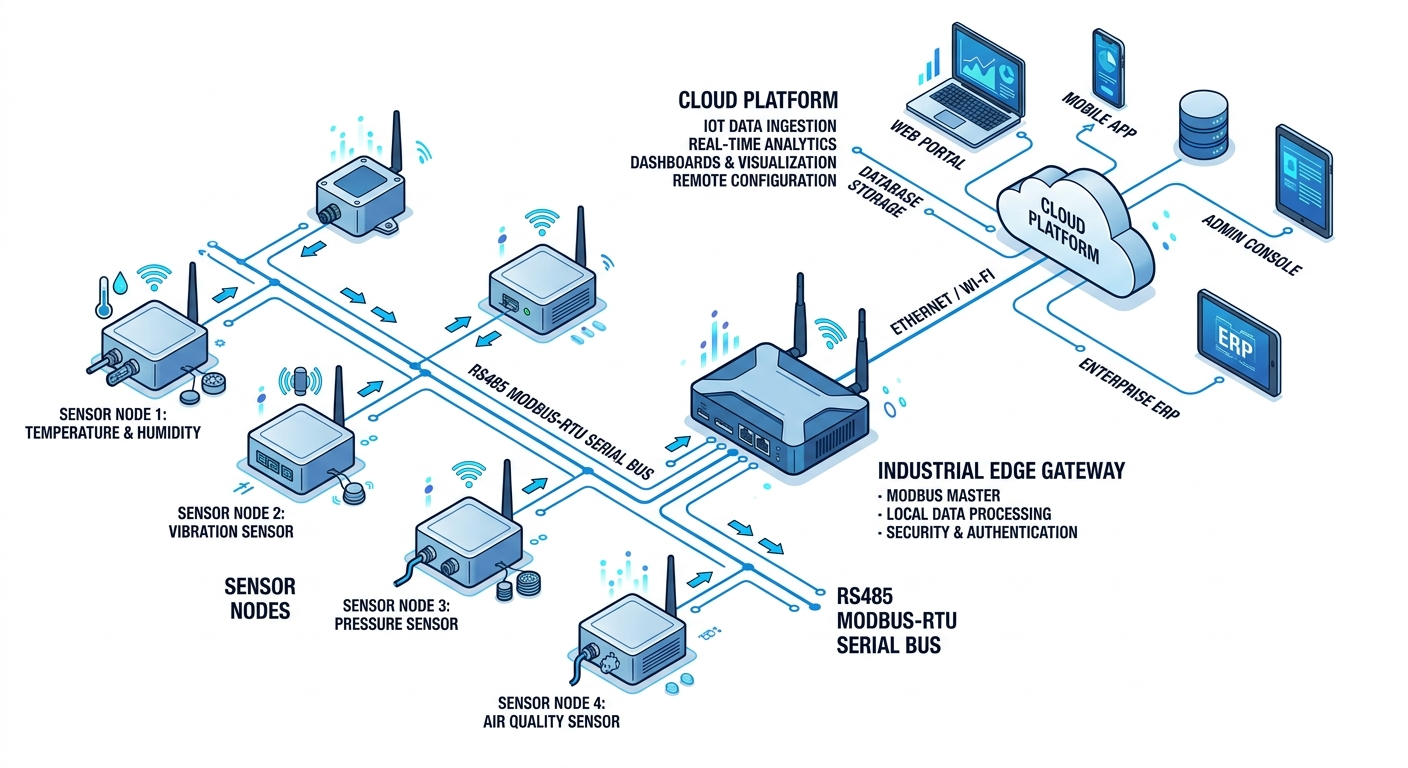

Multi-parameter sensor network system architecture diagram

System Composition

The urban air quality monitoring network utilizing OHTS1050 sensors follows a hierarchical architecture:

Perception Layer: Distributed OHTS1050 nodes featuring louvered radiation shield housing for UV protection and environmental durability. Each node integrates:

  • Dual-frequency PM detection technology with auto-calibration (0-1000μg/m³ range, ±3%FS accuracy)
  • Capacitive temperature/humidity sensing (-40°C to +120°C, ±0.5°C accuracy; 0-99%RH, ±3%RH accuracy)
  • MEMS barometric pressure sensor (0-120kPa, ±0.15kPa accuracy)
  • Digital noise acquisition (30-130dB range, ±0.5dB accuracy)
  • Ambient light detection (0-200000Lux range)

Network Layer: RS485 industrial bus topology with Modbus-RTU protocol enables robust long-distance communication (2000m maximum) across urban environments. The bus-type architecture supports up to 32 devices per segment (extendable with repeaters), allowing scalable grid deployments. Configurable device addressing (0x01 default, software configurable) and baud rate settings facilitate integration with existing SCADA or IoT platforms.

Application Layer: Data aggregation gateways collect multi-parameter streams, performing edge preprocessing before cloud transmission. The synchronized timestamping of PM2.5, noise, and meteorological data enables advanced analytics including pollution dispersion modeling, urban heat island correlation studies, and noise propagation mapping under varying atmospheric conditions.

Data Flow Architecture

  1. Acquisition: Simultaneous sampling of all seven parameters with optimized response times (temperature ≤25s, humidity ≤8s, PM ≤90s, noise ≤3s)
  2. Transmission: Differential RS485 signaling ensures noise immunity across long cable runs typical of urban infrastructure
  3. Integration: Standard Modbus-RTU register mapping allows seamless integration with existing environmental monitoring software platforms
  4. Visualization: Unified dashboards display correlated multi-parameter trends, enabling identification of pollution events and their meteorological drivers

Key Advantages

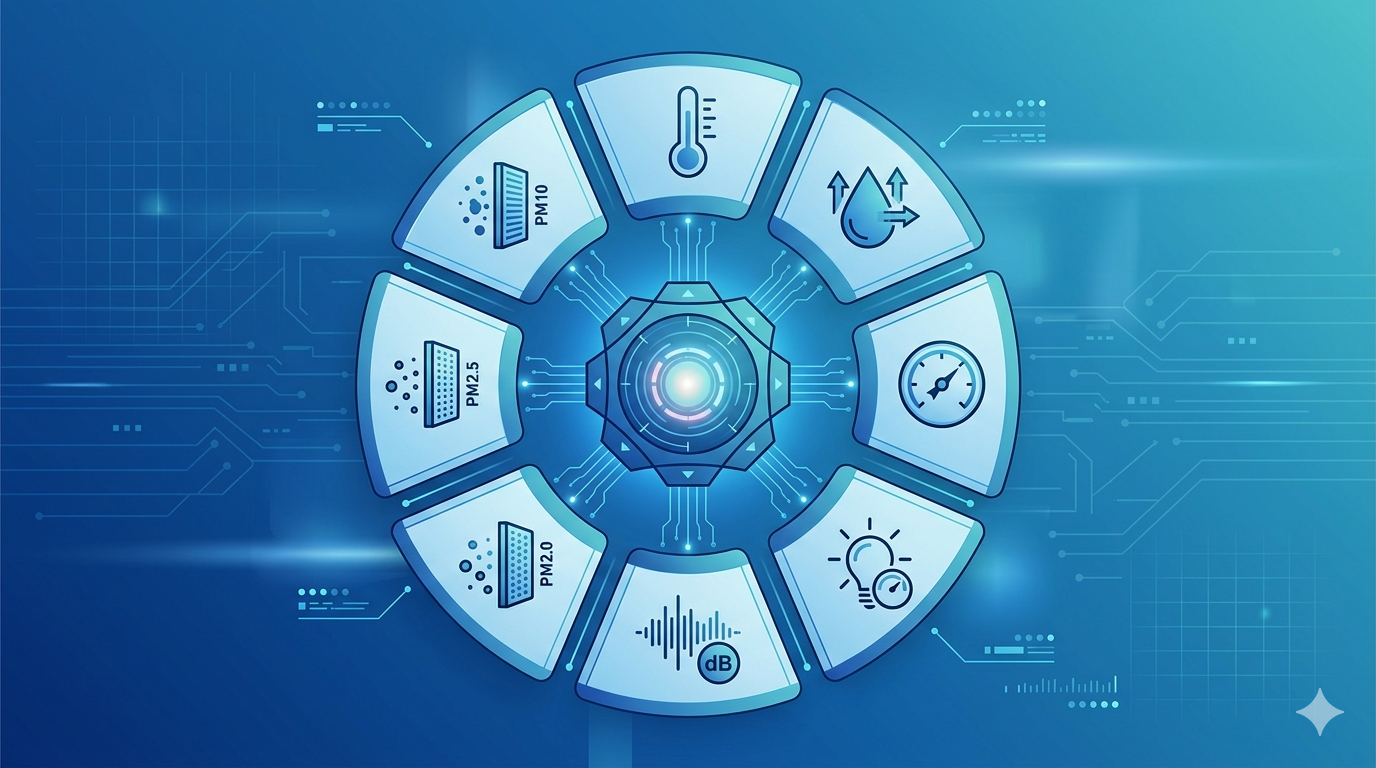

Seven parameter environmental monitoring capabilities

Comparative Analysis: Traditional vs. Integrated Approach

MetricTraditional Single-Parameter DeploymentOHTS1050 Integrated SolutionImprovement
Parameters per Node17700% data density
Installation Time45-60 minutes per sensor15-20 minutes per node67% reduction
Cable Requirements6-7 power/communication runs1 power/communication run85% reduction
Maintenance Events/Year14-21 (per complete station)2-3 (single unit)80% reduction
Spatial Data CorrelationTemporal offset due to physical separationSynchronized acquisitionZero offset
Power Consumption3.5-5.6W (combined discrete sensors)≤0.8W77-86% reduction
RS485 Bus DistanceN/A (typically separate networks)2000mUnified long-range network

Performance Specifications

ParameterRangeAccuracyLong-term StabilityResponse Time
Temperature-40°C ~ +120°C±0.5°C (@25°C)≤0.1°C/y≤25s
Humidity0%RH ~ 99%RH±3%RH (@60%RH, 25°C)≤1%/y≤8s
Atmospheric Pressure0kPa ~ 120kPa±0.15kPa (@25°C, 101kPa)-0.1kPa/y≤2s
Illuminance0 ~ 200000Lux±7% (@25°C)≤5%/y≤2s
Noise30dB ~ 130dB±0.5dB (Ref 94dB@1kHz)≤3dB/y≤3s
PM2.5/PM100 ~ 1000μg/m³±3%FS (@0-100μg/m³)≤1%/y≤90s

Application Scenarios

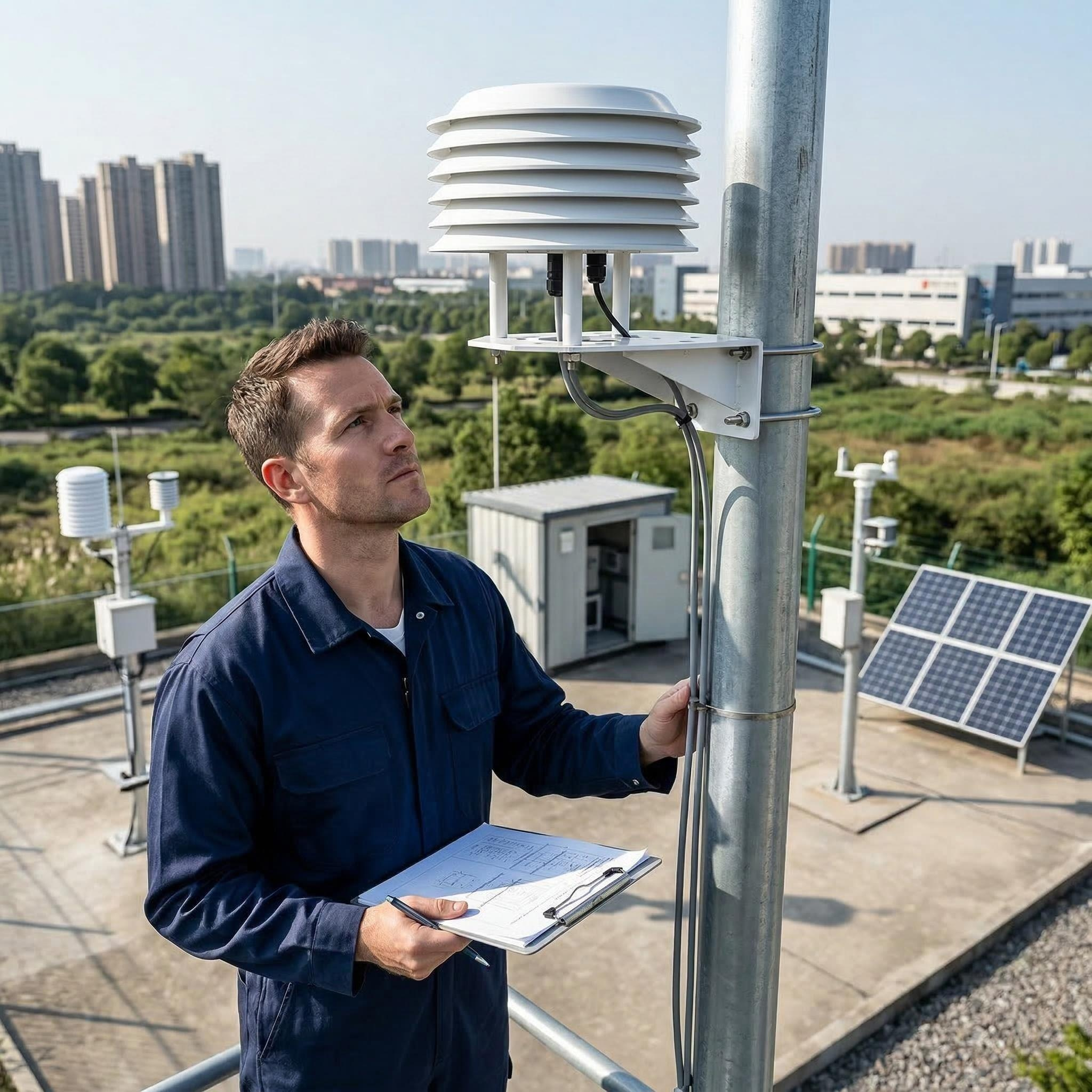

Urban deployment scenario for environmental monitoring

Smart City Grid Monitoring

Scenario: Metropolitan environmental protection agencies require high-resolution air quality mapping across 50km² urban core.

Implementation:

  • STEP 1: Deploy OHTS1050 nodes at 800m grid intervals on existing streetlight infrastructure ( leveraging 10-30VDC power compatibility)
  • STEP 2: Connect nodes via RS485 bus topology to neighborhood data concentrators, maintaining bus-type wiring standards with 120Ω termination resistors
  • STEP 3: Configure Modbus-RTU addresses sequentially (0x01-0x20) per bus segment to ensure conflict-free communication
  • STEP 4: Implement calibration protocols using the device’s auto-calibration technology for PM sensors, with annual verification against reference standards
  • STEP 5: Integrate data streams into municipal IoT platforms for real-time public health advisories and urban planning analytics

Construction Site Compliance Monitoring

Scenario: Smart construction projects require simultaneous dust (PM2.5/PM10) and noise monitoring for regulatory compliance.

Implementation:

  • STEP 1: Install OHTS1050 units at site perimeter points, utilizing the louvered radiation shield to protect against dust accumulation while ensuring airflow
  • STEP 2: Establish solar-powered installations (10-30VDC input compatible) for off-grid perimeter locations
  • STEP 3: Configure noise measurement parameters to capture 30-130dB range for construction equipment monitoring
  • STEP 4: Set threshold alarms based on PM2.5 (>75μg/m³) and noise (>85dB) regulatory limits using the fast-response acquisition (PM ≤90s, noise ≤3s)
  • STEP 5: Correlate particulate data with wind speed/direction (derived from pressure gradients and local meteorological context) to implement directional dust suppression

Agricultural Meteorological Networks

Scenario: Precision agriculture operations require microclimate monitoring for crop protection and yield optimization.

Implementation:

  • STEP 1: Position sensors at 2m height within crop canopies, ensuring the UV-resistant housing withstands agricultural chemical exposure (note: avoid VOC-heavy environments near certain pesticide applications due to capacitive humidity sensor sensitivity)
  • STEP 2: Leverage the wide temperature range (-40°C to +120°C) for frost protection alerts and heat stress monitoring
  • STEP 3: Utilize illuminance data (0-200000Lux) for photosynthetically active radiation (PAR) estimation and growth degree-day calculations
  • STEP 4: Integrate humidity data (±3%RH accuracy) with temperature for vapor pressure deficit (VPD) calculations critical for irrigation scheduling
  • STEP 5: Deploy long-range RS485 networks (up to 2000m) to connect distributed field sensors to central farm management systems

FAQ

Q: Can the OHTS1050 be used as a safety or emergency stop device?

A: No, this device is strictly prohibited from use as a safety device or emergency stop device, nor shall it be used for any other purpose where equipment failure may cause personal injury. Technical documentation must be consulted prior to installation, operation, or maintenance.

Q: Are there environmental restrictions for the humidity sensor?

A: Yes, the humidity sensor operates on a capacitive principle and should be avoided in environments containing volatile organic compounds (VOCs) as they may affect measurement accuracy.

Q: What are the RS485 bus wiring requirements?

A: Device addresses on the same bus must not conflict with factory default address being 0x01. RS485 signal lines A and B must not be reversed in polarity. Bus wiring should utilize bus-type topology and avoid star connections. A 120Ω termination resistor is recommended at the bus end.

Q: What is the warranty period for the sensors?

A: The PM sensor warranty period is 12 months from the date of purchase, while the main device warranty is 24 months. Periodic calibration is recommended to ensure measurement accuracy.

Q: What power supply is recommended?

A: Use of a 10VDC ~ 30VDC DC power supply is recommended to ensure adequate power capacity for device consumption ≤0.8W.

Q: How does the dual-frequency PM detection technology work?

A: The OHTS1050 employs advanced dual-frequency data acquisition combined with auto-calibration technology for particulate matter detection. This ensures accurate PM2.5 and PM10 measurements with particle counting efficiency of 50% at 0.3μm and 98% at ≥0.5μm, maintaining ±3%FS accuracy in the 0-100μg/m³ range under standard conditions (25°C, 50%RH).

Q: Can multiple OHTS1050 units share the same RS485 bus?

A: Yes, multiple units can be daisy-chained on a single RS485 bus using standard Modbus-RTU protocol. Each device requires a unique address configuration (software configurable), and the bus supports distances up to 2000m with proper termination and topology adherence.
