Optimizing Irrigation Scheduling with Integrated Soil Moisture and Temperature Monitoring

The Challenge

Agricultural irrigation remains one of the most resource-intensive operations in modern farming, accounting for approximately 70% of global freshwater withdrawals. Yet, traditional irrigation strategies relying on fixed schedules or visual crop assessment frequently result in either water waste through over-irrigation or yield losses due to water stress.

The critical limitation of conventional single-parameter monitoring systems is their inability to account for the complex interplay between soil moisture and thermal conditions. Soil temperature directly influences water evaporation rates, root metabolic activity, and nutrient uptake efficiency. Without simultaneous monitoring of both volumetric water content (VWC) and temperature, irrigation decisions lack the environmental context necessary for precision water management.

The financial implications are significant: unnecessary irrigation cycles increase energy costs and labor expenses, while suboptimal timing can reduce crop yields by 15-25%. Furthermore, excessive moisture combined with elevated soil temperatures creates anaerobic conditions that promote root diseases and nutrient leaching, compounding long-term soil health degradation.

The Solution

The OHTS1022 Soil Moisture and Temperature Sensor addresses these challenges through integrated dual-parameter monitoring, enabling data-driven irrigation scheduling that accounts for both hydrological and thermal soil conditions. By combining Frequency Domain Reflectometry (FDR) technology for moisture detection with Class A PT1000 RTD temperature sensing, this sensor provides comprehensive soil environment characterization in a single ruggedized package.

Unlike single-parameter alternatives, the OHTS1022 enables precision agriculture operators to implement dynamic irrigation thresholds that adjust based on soil temperature variations. For example, during high-temperature periods, the system can trigger irrigation at higher moisture levels to compensate for increased evapotranspiration, while cooler conditions may allow for extended intervals between watering cycles.

The economic impact is measurable: deployments utilizing dual-parameter monitoring typically achieve 30-40% reduction in water consumption while maintaining or improving crop yields. The sensor’s sub-second response time (<1s) ensures real-time control capability for automated irrigation systems, while IP68 protection guarantees continuous operation through harsh environmental conditions including direct soil burial or temporary immersion.

Technical Architecture

System Composition

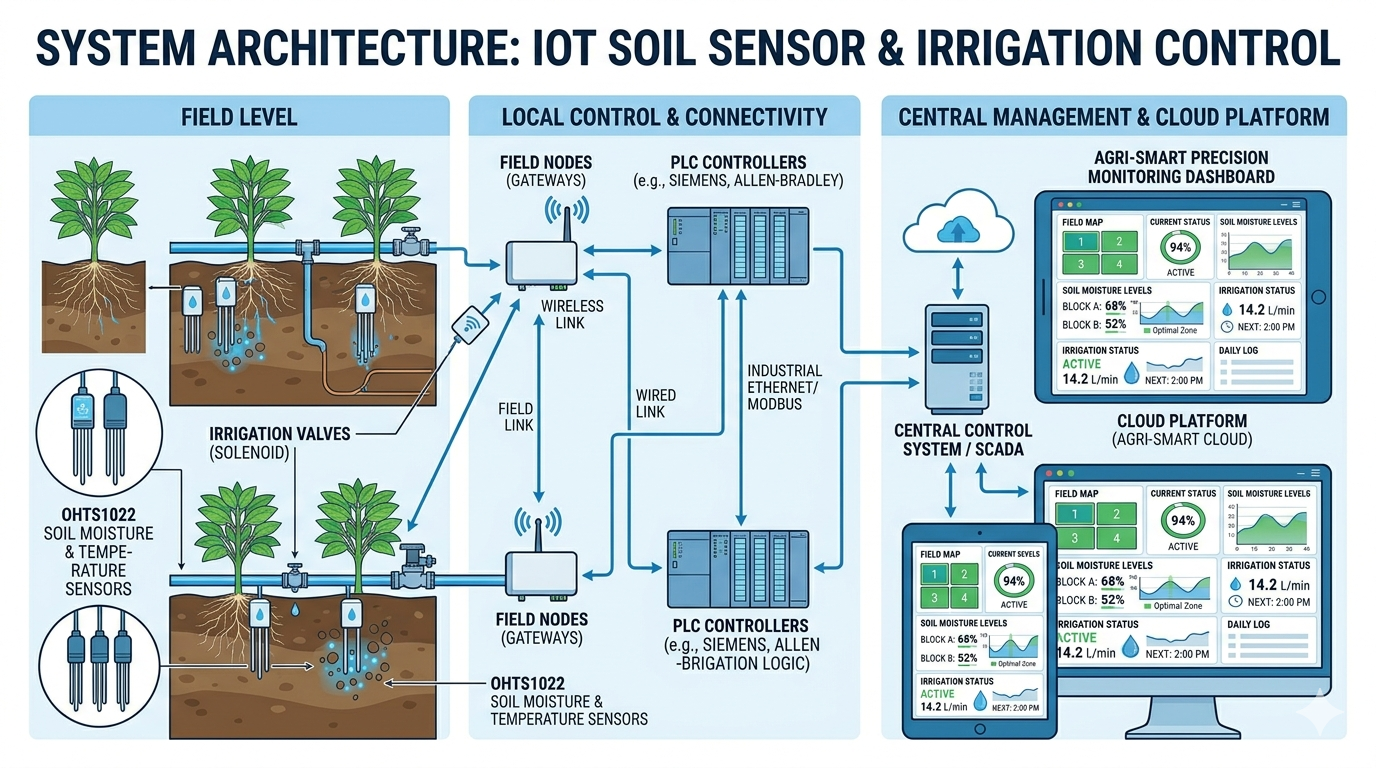

A precision irrigation monitoring network utilizing the OHTS1022 comprises three integrated layers:

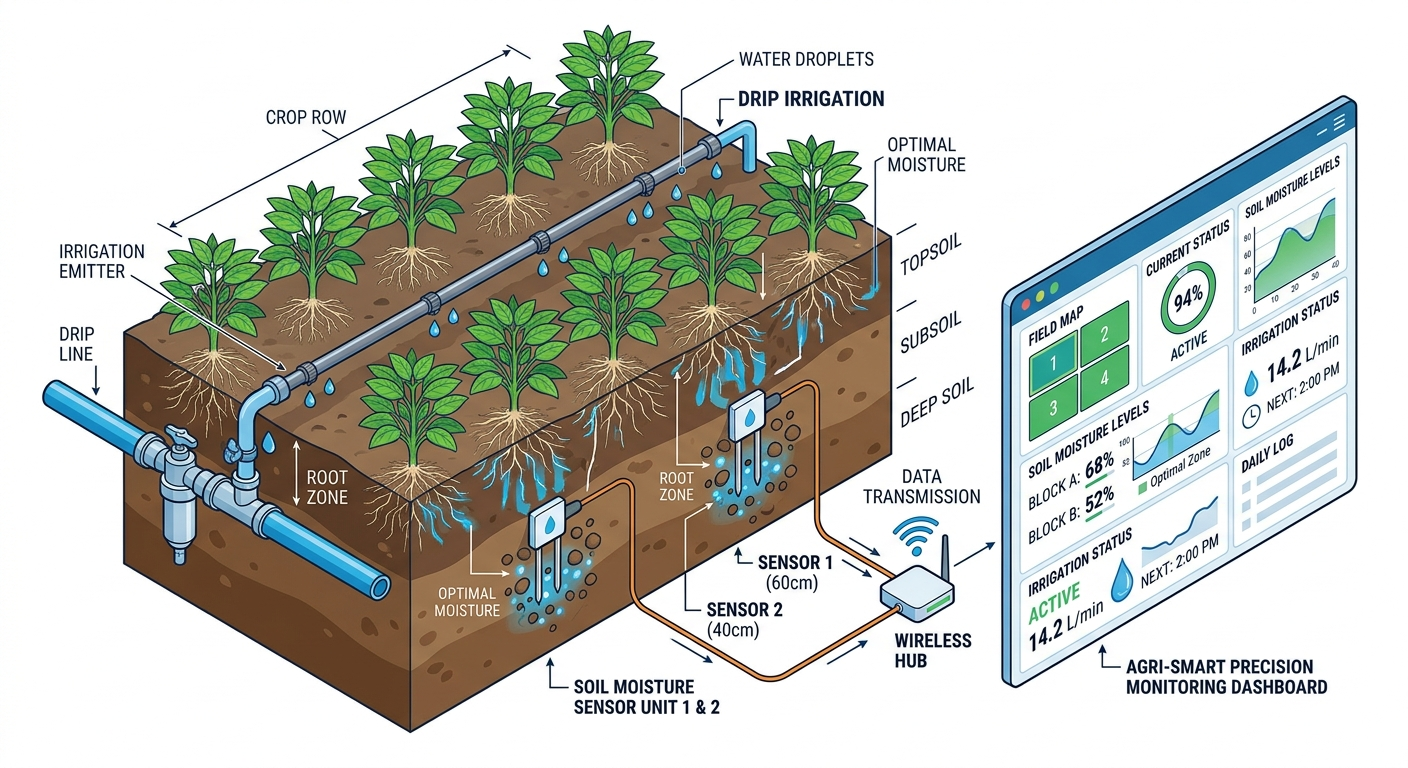

Sensor Layer: The OHTS1022 sensors deploy at root zone depths (typically 15-30cm for row crops, 5-15cm for turf and shallow-rooted plants), providing continuous VWC and temperature data. The 316L stainless steel probes ensure long-term corrosion resistance in diverse soil chemistries.

Transmission Layer: Supporting multiple industrial protocols including RS485/Modbus-RTU, 4-20mA current loops, and standard voltage outputs (0-2V, 0-5V, 0-10V), the sensors integrate seamlessly with existing PLC systems, RTU data loggers, or IoT gateways. The Modbus-RTU implementation enables multi-drop networking of up to 32 sensors per bus, reducing cabling infrastructure costs.

Application Layer: Centralized monitoring software processes real-time data to calculate soil moisture deficit, temperature-adjusted evapotranspiration rates, and optimal irrigation windows. Integration with weather station data further refines predictive irrigation models.

Operating Principles

Moisture Measurement: The FDR technology operates at 1GHz frequency, measuring the dielectric constant of the soil medium. Since water has a dielectric constant of approximately 80 compared to soil minerals (3-5) and air (1), volumetric water content calculation achieves ±2% accuracy within the 0-50% VWC range.

Temperature Measurement: The PT1000 platinum resistance detector provides ±0.2°C accuracy across the -30°C to +70°C operating range, with integrated signal conditioning eliminating the need for external calibration.

Data Integration Workflow

Data flows from sensor to decision through the following pathway: The OHTS1022 samples both parameters simultaneously, processes the signals through integrated conditioning circuits, and transmits via the selected interface. SCADA systems or irrigation controllers receive this data, apply crop-specific algorithms to determine irrigation necessity, and trigger valve actuation only when soil conditions warrant intervention.

Key Advantages

The integrated design eliminates the need for separate temperature sensors, reducing field installation complexity by 50% and maintenance points by 40%. The standardized Modbus-RTU protocol ensures interoperability with major agricultural automation platforms including Campbell Scientific, Adcon, and proprietary PLC systems.

Application Scenarios

Large-Scale Agricultural Irrigation

For broad-acre row crops such as corn, soybeans, and wheat, network deployment of OHTS1022 sensors enables zone-specific irrigation management. Sensors install at representative points across the field, accounting for soil texture variations and elevation changes.

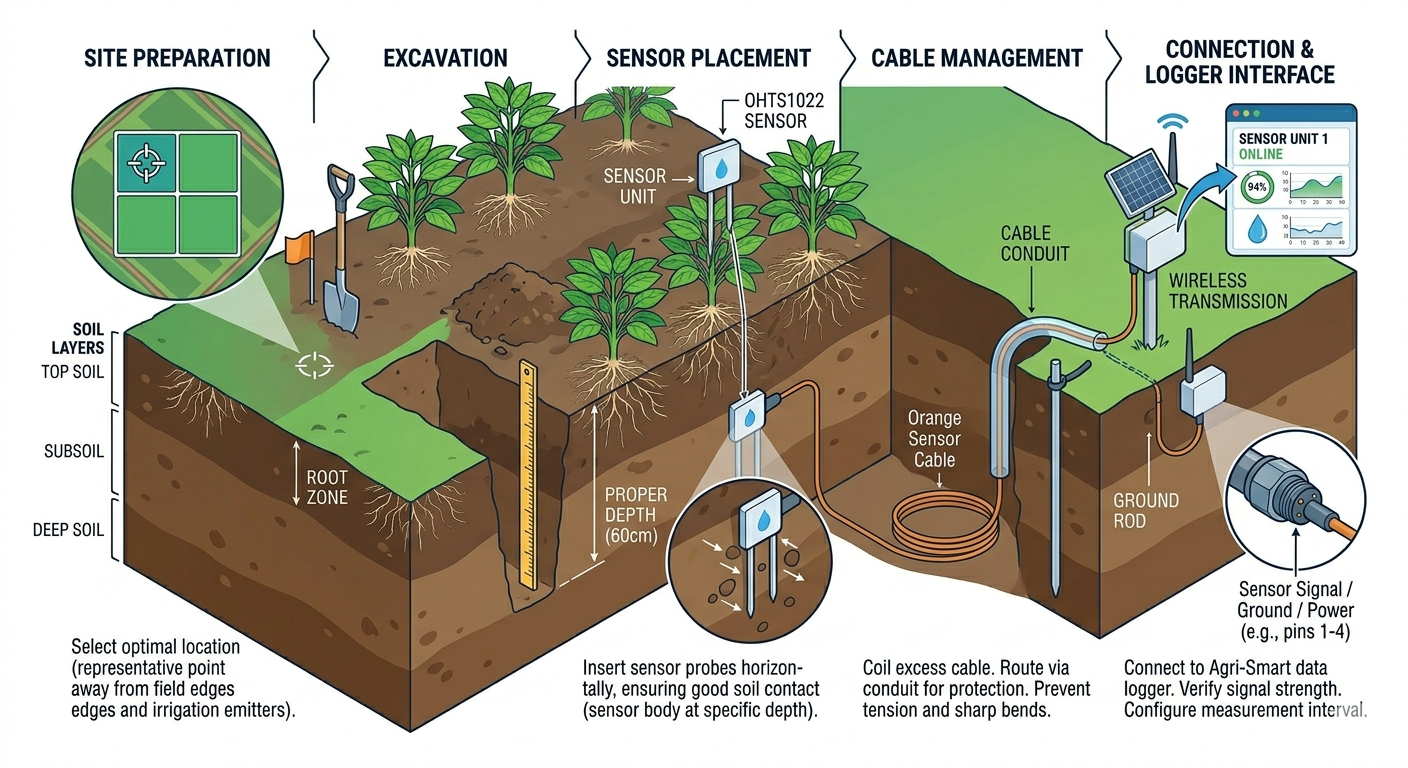

STEP 1: Site Assessment and Zoning Conduct soil texture analysis to identify management zones. Install sensors in each zone at the primary root depth, ensuring representative placement away from field edges and irregularities.

STEP 2: Sensor Configuration Configure Modbus addresses for each sensor (default 01, increment sequentially). Set measurement intervals based on crop stage—15-minute intervals during germination, 30-60 minutes during vegetative growth.

STEP 3: Threshold Calibration Establish temperature-adjusted moisture thresholds. For example, set irrigation trigger at 25% VWC when soil temperature exceeds 25°C, but extend to 20% VWC when temperature remains below 20°C.

STEP 4: Automation Integration Connect sensor outputs to irrigation control valves via PLC or dedicated irrigation controllers. Implement feedback loops that pause irrigation when sensors detect saturation, preventing runoff and energy waste.

Greenhouse and Controlled Environment Agriculture

In greenhouse operations where root zone temperature management is critical for nutrient uptake, the OHTS1022 provides continuous substrate monitoring. The IP68 rating ensures reliable operation in high-humidity environments and hydroponic systems.

STEP 1: Substrate Integration Install sensors at mid-depth of growing containers or hydroponic media. For rockwool or coco coir substrates, ensure firm contact between probes and medium without compression damage.

STEP 2: Climate Correlation Integrate sensor data with greenhouse climate computers. Use temperature data to adjust irrigation timing relative to heating/cooling cycles, preventing thermal shock to root systems.

STEP 3: Precision Fertigation Combine moisture data with EC (Electrical Conductivity) sensors to optimize nutrient solution delivery. The temperature compensation ensures accurate moisture readings regardless of solution temperature variations.

Research and Precision Farming

For agricultural research applications requiring high-resolution soil data, the OHTS1022 supports scientific-grade monitoring with its ±0.2°C temperature precision and standardized output protocols compatible with data logging systems like CR1000X and LoRaWAN gateways.

FAQ

Q: What measurement principles does the OHTS1022 use? A: The OHTS1022 uses Frequency Domain Reflectometry (FDR) principle for soil volumetric water content measurement by detecting changes in soil dielectric constant, and Class A PT1000 platinum resistance temperature detector (RTD) for temperature measurement.

Q: What protection rating does the OHTS1022 have? A: The sensor has IP68 ingress protection rating with an integrated sealed structural design using epoxy resin sealing, enabling direct burial in soil for long-term operation or immersion in water.

Q: What output signals are supported by the OHTS1022? A: The sensor supports voltage signals (0 ~ 2V, 0 ~ 5V, 0 ~ 10V), current signals (4 ~ 20mA), and RS485 digital interface with Modbus-RTU protocol, ensuring compatibility with various data acquisition terminals and PLC systems.

Q: What are the installation precautions for the OHTS1022? A: Strictly prohibit direct insertion of probes into stones, hard clods, or frozen soil to prevent probe bending or damage. When removing the sensor from soil, grip the sensor body and never pull the cable directly. Ensure full contact between the sensor probe and soil to minimize operational errors.

Q: What are the power supply requirements? A: For voltage and RS485 output, the supply voltage is 5 ~ 24V DC. For current output and high voltage output (0 ~ 5V, 0 ~ 10V, 4 ~ 20mA), the supply voltage is 12 ~ 24V DC.
