Bringing Soil to Life: A Practical IoT Approach for Smarter Greenhouses
When you step into a greenhouse at dawn, there’s that familiar moment of uncertainty. You look at the rows of tomatoes or lettuce and wonder: Are the roots getting enough moisture? Did yesterday’s fertigation push the salt levels too high? Is the soil warming up evenly, or are there cold pockets stressing the young plants?
For years, growers have relied on experience and handheld meters—walking the aisles, pulling soil samples, sending them to labs, and waiting days for results. By the time the report arrives, the conditions have already changed. This gap between sensing and knowing is where modern greenhouse management often struggles.
This proposal outlines a grounded, step-by-step approach to closing that gap. It is not about replacing the grower’s intuition with machines, but about giving that intuition real-time, reliable data to work with.
The Challenge of Invisible Variables
Greenhouse cultivation operates in a delicate balance. Above ground, you can see wilting leaves or yellowing edges. Below ground, where the real work of nutrient uptake happens, everything remains hidden until problems become visible in the crop—and by then, recovery is expensive.
Traditional monitoring approaches face three consistent frustrations:
Fragmented Data: One device measures moisture, another checks pH, a third estimates nutrient levels. Each uses different software, different batteries, different calibration schedules. The result is a dashboard full of gaps and contradictions.
Electrical Noise: Greenhouses are electrically messy environments. Motorized ventilation, heating cables, LED drivers, and pump controllers create electromagnetic interference that ordinary sensors struggle with, leading to erratic readings or complete data loss during peak operations.
Maintenance Burden: Soil sensors in greenhouse environments face constant exposure to moisture, fertilizer salts, and temperature swings. Probes corrode, seals fail, and cables degrade. A system that requires weekly cleaning or monthly replacement quickly becomes more trouble than it is worth.
A Unified Approach to Soil Intelligence
The core idea here is simple: instead of treating soil monitoring as a collection of separate measurements, treat it as a single, continuous conversation with the root zone.
Imagine installing robust sensing points throughout your greenhouse—perhaps one for every 500 square meters, positioned at the exact depth where your crop’s feeder roots are most active. Each point simultaneously tracks temperature, moisture, salinity, conductivity, pH, and the three primary macronutrients: nitrogen, phosphorus, and potassium.
This is where a specific type of integrated sensor becomes valuable—one that combines eight essential parameters into a single stainless steel probe. The advantage is not just reducing the number of devices to install, but ensuring that all your readings share the same reference point and timing. When moisture spikes, you see the corresponding EC drop in the same data packet, not ten minutes later from a different device.
Crucially, for greenhouse environments, these sensors need industrial-grade electrical isolation. The soil probes might be sitting in conductive nutrient solution near high-powered heating mats, while the data cables run alongside 220V power lines. Standard sensors often pick up noise or suffer ground loop issues in these conditions. Look for units offering substantial isolation voltage—around 1500V between the sensing elements and the communication lines—with RS485 interfaces that can handle serious voltage spikes without garbling the data.
Building the Network: Keep It Simple
The best IoT systems are the ones you forget are there. They simply work, rain or shine, season after season.

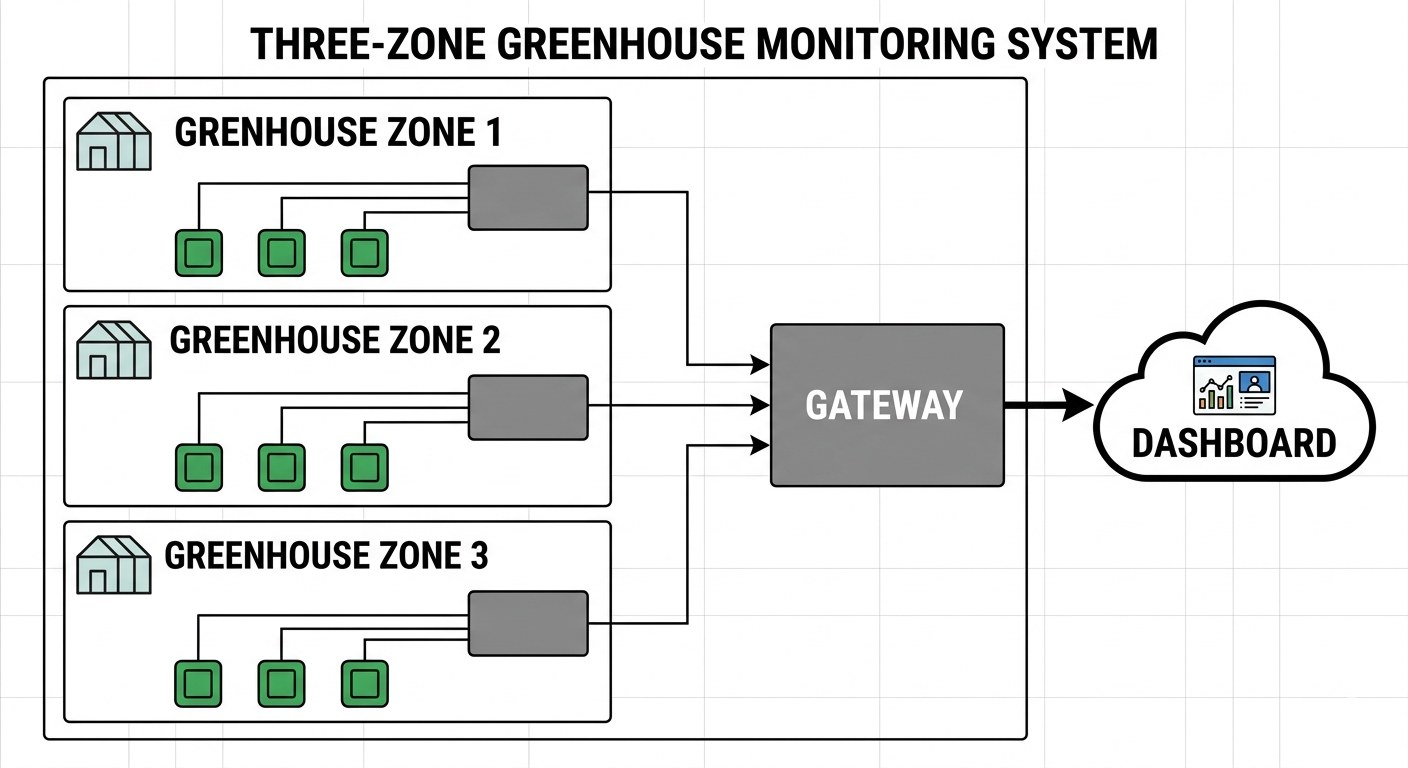

For a typical greenhouse spanning several thousand square meters, we recommend a zone-based architecture. Divide your growing area into logical sections—perhaps “North Benches,” “South Benches,” and “Seedling Area.” Each zone gets its own local gateway, a ruggedized box mounted on a structural post, connected to a cluster of four to six soil sensors via standard RS485 cabling.
Why RS485? It is old technology, but proven. It runs for hundreds of meters without signal degradation, uses simple two-wire connections, and laughs at the electrical noise that WiFi or Bluetooth would find debilitating. The sensors communicate using Modbus-RTU, a protocol that every industrial controller and most modern agricultural PLCs understand natively.
Each gateway acts as a translator. It polls the sensors every few seconds—requesting temperature, moisture, EC, salinity, pH, N, P, and K values—then packages this into lightweight MQTT messages sent to your central server or cloud platform via Ethernet, WiFi, or cellular connection. If the internet drops, the gateway stores several weeks of data locally and uploads everything once connectivity returns.
From Data to Decisions
Collecting data is easy; making it useful is the art.
Once your sensors are reporting consistently, the next layer is interpretation. Start with the basics: set thresholds that match your crop’s needs. For example, if you are growing leafy greens hydroponically in substrate, you might want to maintain moisture between 65% and 75% volumetric water content. When the sensor drops below 65%, it triggers a gentle irrigation pulse. When it hits 75%, it stops.
But the real value emerges when you start looking at combinations. High moisture combined with rising EC (electrical conductivity) often indicates salt buildup from evaporation—time to schedule a leaching cycle. A dropping pH alongside stable nitrogen readings might suggest the root zone is becoming acidic, affecting nutrient availability even though the fertilizer concentration is correct.
The NPK readings deserve special attention. These ion-selective electrodes give you immediate feedback on nutrient availability, not just what you put into the irrigation line, but what is actually accessible to the roots. If you see nitrogen climbing after a fertigation event but phosphorus staying flat, that is a clear signal to check your injector ratios or mixing tank agitation.
Installation: Doing It Right the First Time
The success of any soil monitoring system depends entirely on proper physical installation. Poor contact between sensor and soil leads to erratic readings that no amount of software filtering can fix.

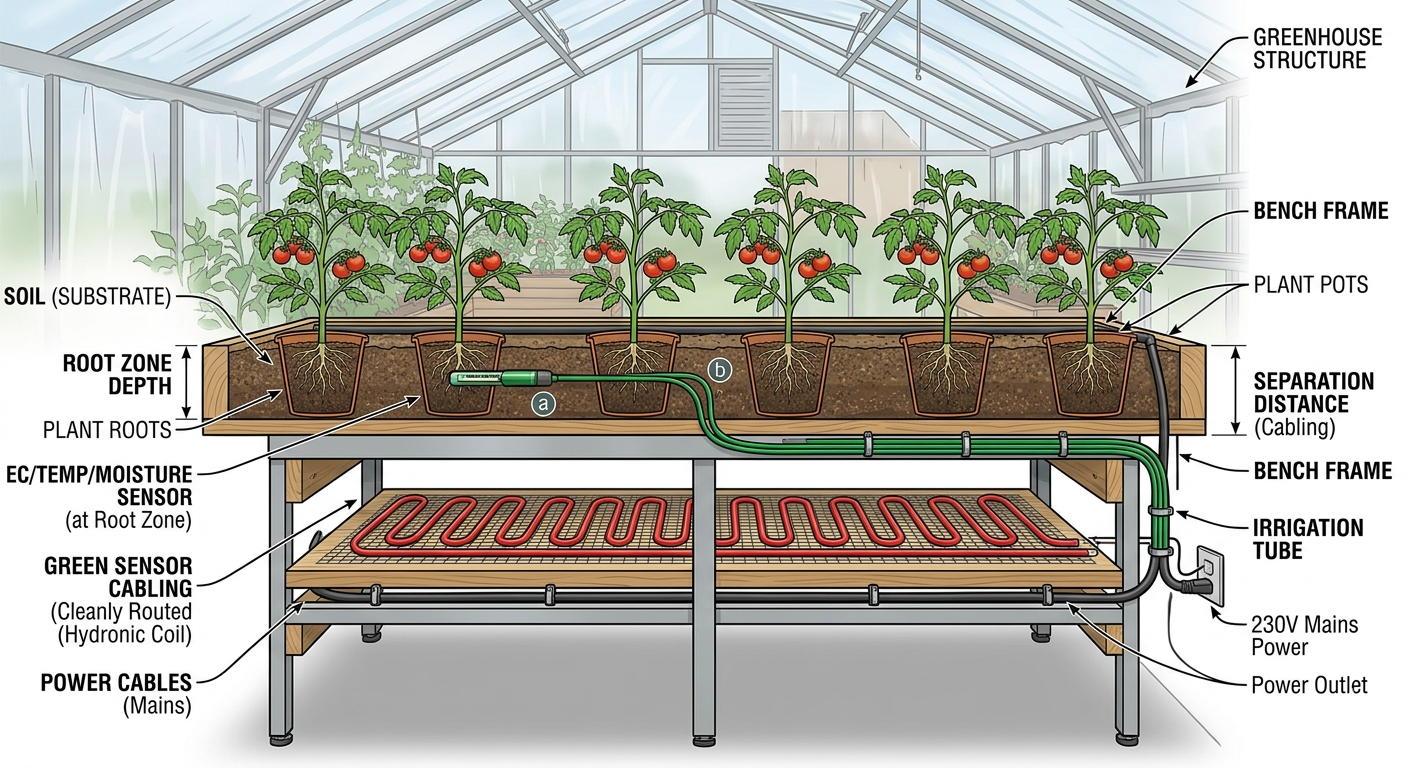

When positioning your probes, aim for the active root zone—typically 15 to 25 centimeters deep for mature greenhouse crops like tomatoes or cucumbers, perhaps 10 centimeters for shallow-rooted lettuce. The probe should slide into the substrate with minimal force; never hammer or force it into compacted soil. If you meet resistance, move to a new spot or loosen the soil first. You want the full length of the sensing element buried, with intimate contact against the root zone material.
Cable management matters more than most people realize. In a greenhouse, cables get snagged by carts, chewed by rodents, or damaged by UV exposure over time. Route cables along permanent structures, use proper strain relief at the sensor exit point (never pull the sensor out by the cable), and protect runs with conduit where they cross walkways.
Electrical safety is paramount. Even though your sensors are isolated, follow standard practices: keep signal cables separate from power cables by at least 30 centimeters, use shielded twisted pair for the RS485 runs, and ensure proper grounding at a single point to avoid ground loops.
Calibration and Maintenance: The Honest Truth
No sensor works perfectly forever without attention. The good news is that modern multi-parameter probes are remarkably stable, but they are not magic.
Plan for a quarterly calibration routine. Keep standard reference solutions on hand—a pH 7.0 and pH 4.0 buffer for the pH electrode, and known conductivity standards for the EC cell. Dip the probes in these solutions, compare the readings to the known values, and adjust your software scaling if drift has occurred. The NPK electrodes may need more frequent calibration in high-fertility environments, perhaps every six to eight weeks, as they can develop reference junction coating.
Physical cleaning is equally important. Salts and organic matter can accumulate on the stainless steel probes. A gentle rinse with distilled water during your regular greenhouse sanitation cycle usually suffices. Avoid abrasive scrubbing that might scratch the sensing surfaces.
Real-World Application: A Day in the Life
Let us walk through a concrete scenario. You are managing a 2,000-square-meter greenhouse growing beefsteak tomatoes in rockwool slabs.
At 6:00 AM, before you even arrive, the system notices that the night temperature dropped faster than expected. The soil temperature sensors in Zone 3 are reading 14°C—cooler than the 18°C optimum for root activity. The system automatically nudges the root zone heating up by two degrees, but also flags that the lower temperature reduced overnight water uptake. Moisture levels are sitting at 78%, slightly high for this growth stage.
By 8:30 AM, as solar gain increases and transpiration picks up, moisture drops to 71%. The system triggers a 90-second irrigation pulse with your standard nutrient solution. The OHTS1020 units catch the immediate EC rise as fresh solution hits the slabs, then track the gradual decline as the plants take up water faster than ions.
At 2:00 PM, the pH reading in Zone 2 drifts from 5.8 to 6.4. Simultaneously, the potassium reading flattens out despite adequate levels in the feed solution. This pattern suggests the root zone is becoming alkaline, locking out potassium. You get a notification suggesting a mild acidification of the next irrigation cycle—perhaps dropping the feed pH to 5.5 for the next two events to pull the slab back into range.
Without multi-parameter sensing happening in real-time, that potassium deficiency might not show as visible symptoms for three or four days. By then, you have lost fruit quality and yield potential. With the data, you catch it early and adjust in hours, not days.
Scaling and Evolving the System
Start small. Pick one greenhouse bay or one crop variety for your pilot. Install four or five sensing points, establish your network gateway, and spend a month simply watching the data. Learn the daily rhythms of your soil—how moisture ebbs and flows, how temperature lags behind air temperature, how EC builds up between irrigations.
Once you trust the readings and have adjusted your irrigation scheduling based on actual soil conditions rather than timers, expand to the next bay. Each addition gets easier because you are replicating a proven pattern, not experimenting.
Over time, you will accumulate historical data that becomes genuinely valuable. You will see how your root zone behaves in February versus July. You will identify which bench positions consistently dry out faster—indicating uneven airflow or irrigation emitter variation. You might even correlate specific NPK ratios with harvest weights, fine-tuning your fertilizer recipes with precision that lab tests alone cannot provide.
Addressing Common Concerns
“Will this work in my organic soil mix, or just in hydroponics?”
These sensing technologies function in any moist medium—peat, coco coir, rockwool, even native soils if you are doing pot culture. The FDR moisture measurement and ISE nutrient detection are media-agnostic, though you should calibrate specifically for your mix’s electrical characteristics.
“What happens when a sensor fails?”
Industrial-grade probes with IP68 ratings and 316L stainless construction are remarkably resilient, but eventually, electronics wear out. Design your zoning so losing one sensor leaves you with neighbors providing coverage. Keep one spare probe on hand for hot-swapping during critical growing periods. The Modbus addressing makes replacement simple—set the new probe to the same address as the old one, and the system continues without software changes.
“Do I need a computer science degree to run this?”

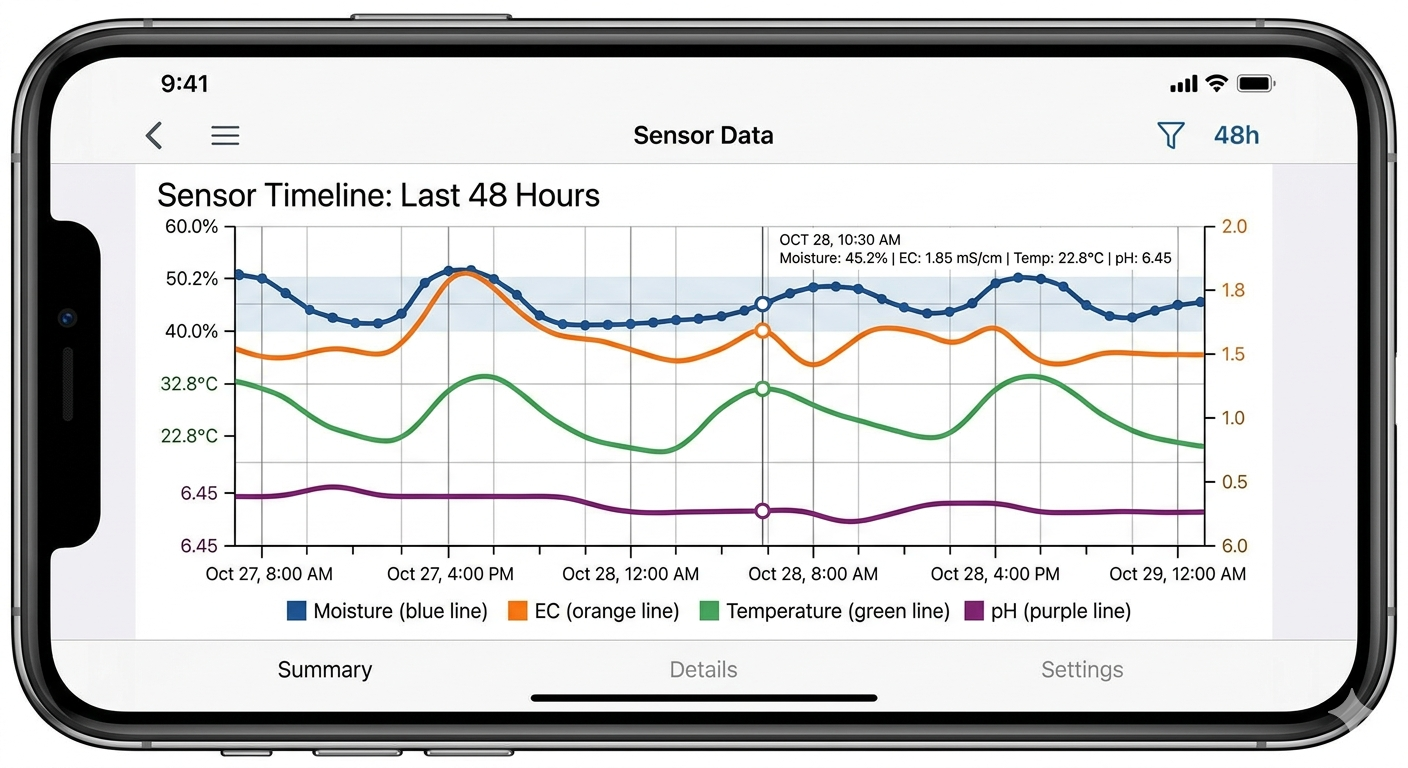

No. The goal is agricultural intelligence, not IT complexity. Modern platforms offer smartphone apps that alert you only when something needs your attention. The daily interface might simply be a green checkmark that turns yellow when a threshold approaches, red when action is needed. The raw data is there if you want to dive deep, but most days, you just need to know that everything is within range.
Looking Forward: The Bigger Picture
As water becomes scarcer and fertilizer costs fluctuate, the greenhouses that thrive will be those that treat every drop and every gram of nutrient as something to be stewarded carefully, not poured out on schedule regardless of need.
A well-designed soil monitoring network becomes the nervous system of your greenhouse. It does not replace the grower’s eye for plant health or the tactile knowledge of how a heavy slab feels versus a dry one. Instead, it extends those senses below the surface, into the darkness where roots work, giving you continuous awareness of the invisible world that feeds your crop.
The technology is ready. The sensors are robust enough for real greenhouse conditions. The communication protocols are proven. What remains is the willingness to start—to install that first probe, watch that first week’s data, and let the numbers teach you something new about the soil you thought you knew.
References
Shanghai OrangeHorse Electronic Technology Co., Ltd. Technical documentation for the OHTS1020 Isolated Multi-Parameter Soil Sensor, including specifications for temperature, moisture, EC, salinity, pH, and NPK measurement ranges, accuracy ratings, and electrical isolation characteristics (1500V isolation, 5000VRMS withstand, ±150kV/μs CMTI).
Modbus Organization. Modbus Application Protocol Specification V1.1b3, describing the RTU communication standard referenced for RS485 network implementation.
