Product Overview

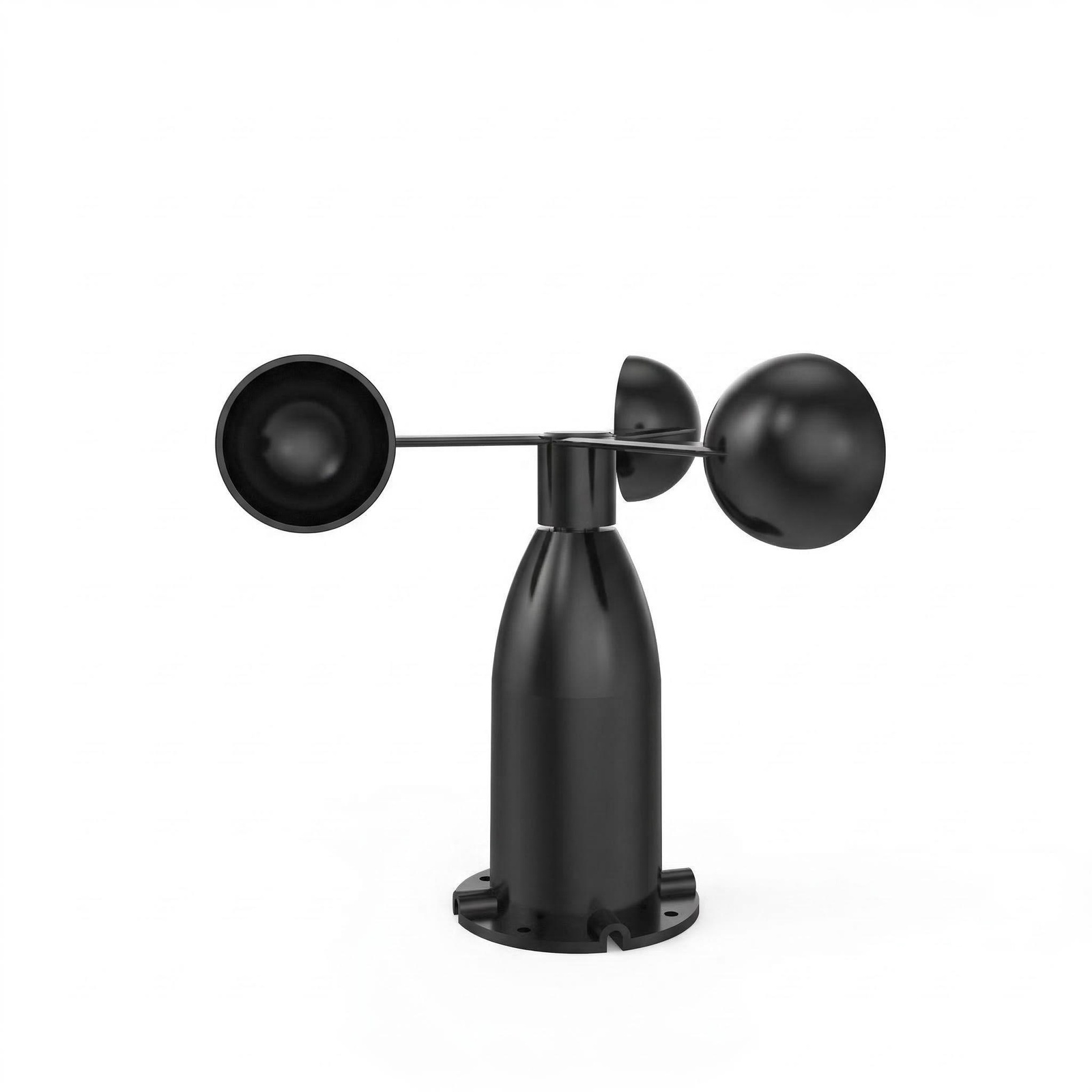

The OHTS1080 is a wind speed measurement transmitter based on a three-cup mechanical structure, featuring an aluminum alloy enclosure and bottom cable exit design for long-term outdoor environmental monitoring. The device incorporates a bearing rotation mechanism that converts cup wheel rotational speed into electrical signals via photoelectric or magnetoelectric conversion principles.
Internal circuitry processes these signals and outputs standard Modbus RTU protocol data through an RS-485 interface. The enclosure surface undergoes anodizing or spray coating treatment, providing UV resistance, rain and snow resistance, and chemical corrosion resistance, making it suitable for wind speed parameter acquisition in meteorological, environmental protection, and industrial field applications.
Features
- Measurement range of 0 ~ 60 m/s with 0.1 m/s resolution, meeting conventional meteorological and industrial monitoring requirements
- All-aluminum alloy enclosure structure with high mechanical strength and corrosion-resistant surface treatment for long-term outdoor deployment
- Direct bottom cable exit design eliminates waterproofing failure risks caused by aging of aviation plug rubber gaskets
- Low-friction bearing solution with small moment of inertia and dynamic response time ≤ 2s
- Internal circuitry with electromagnetic interference suppression capability for industrial electromagnetic environments
- Standard Modbus RTU communication protocol supporting multiple baud rate configurations from 2400 ~ 115200 bps
- Wide-voltage DC power supply range accommodating 5 ~ 30V DC input
Applications

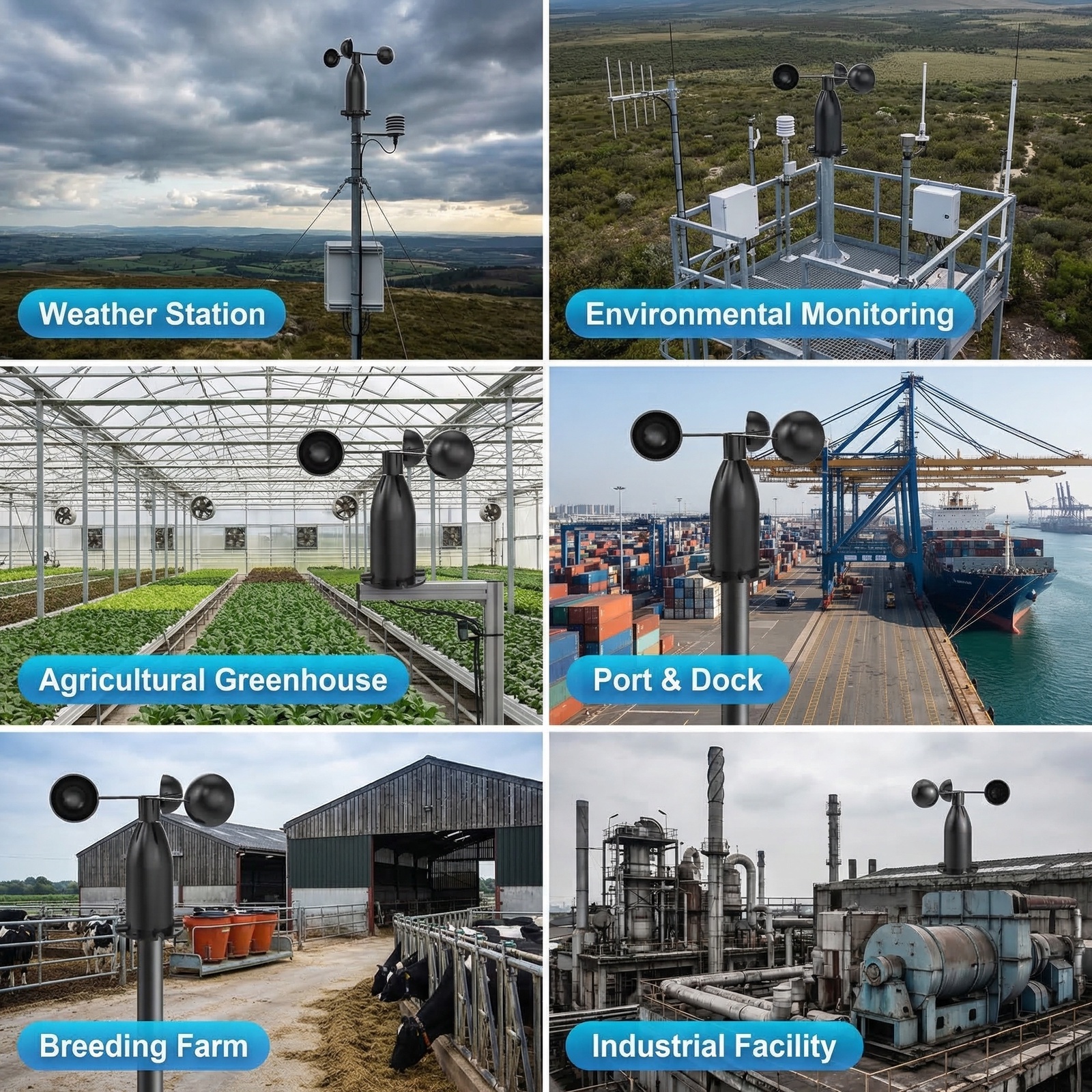

- Wind speed observation at meteorological stations and environmental monitoring stations
- Ventilation control monitoring in greenhouse facilities
- Meteorological parameter acquisition for ships and port terminals
- Airflow monitoring in aquaculture environments
- Peripheral ambient wind speed detection at industrial plants
- Preliminary wind resource assessment for wind farms
- Urban environmental monitoring network nodes
- Microclimate monitoring in agricultural fields
- Meteorological safety monitoring at construction sites
- Meteorological observation systems for scientific research and educational purposes
Technical Specifications
| Parameter | Specification | Remarks |
|---|---|---|
| Supply Voltage | 5 ~ 30V DC | DC Power Supply |
| Maximum Power Consumption | 0.3W | @ 12V DC Supply |
| Operating Temperature | -40 ℃ ~ +60 ℃ | Relative Humidity 0% RH ~ 95% RH (Non-condensing) |
| Communication Interface | RS-485 | Modbus RTU Protocol |
| Data Format | 8 data bits, no parity, 1 stop bit | 8N1 |
| Default Communication Address | 0x01 | Configurable via software |
| Supported Baud Rates | 2400, 4800, 9600, 19200, 38400, 57600, 115200 bit/s | Factory default: 4800 bit/s |
| Measurement Range | 0 ~ 60 m/s | - |
| Resolution | 0.1 m/s | - |
| Accuracy | ±(0.2+0.03V) m/s | V = current wind speed value; Conditions: 0 ~ 30 m/s, 25 ℃ |
| Dynamic Response Time | ≤ 2s | - |
| Parameter Configuration | Parameter settings via RS-485 interface and configuration software | - |
Physical Specifications
| Parameter | Specification |
|---|---|
| Mounting Method | Flange mounting |
| Flange Diameter | φ79.8mm |
| Mounting Hole Circle Diameter | φ68mm |
| Mounting Hole Specification | 4 × φ4.5mm, equally spaced |
| Enclosure Material | Aluminum Alloy |
FAQ
Q: Can the device be disassembled for maintenance or calibration?
A: Strictly prohibited to disassemble the device or touch the sensor core body to avoid permanent damage or calibration failure. The device is factory-calibrated and sealed to maintain measurement accuracy.
Q: What precautions should be taken during installation?
A: Power must be disconnected before installing or removing the transmitter to prevent circuit damage from live operation. Ensure the device maintains a horizontal orientation during mechanical installation to guarantee wind speed measurement accuracy.
Q: What environmental conditions should be avoided?
A: Water ingress will cause irreversible damage; strictly prohibited to use in condensation or extreme temperature environments; prevent thermal shock. The device is designed for relative humidity 0% RH ~ 95% RH non-condensing conditions.
Q: Are there any electromagnetic interference considerations?
A: Installation location should be far from high-power electromagnetic interference sources such as frequency converters and high-power motors to avoid measurement errors. The device incorporates EMI suppression but requires proper installation environment.
Q: Can this device be used as a safety device or emergency stop device?
A: This device is strictly prohibited from use as a safety device or emergency stop device, and shall not be used in applications where equipment failure may cause personal injury. It is intended for monitoring and data acquisition purposes only.
